Home Light Lamp

Description

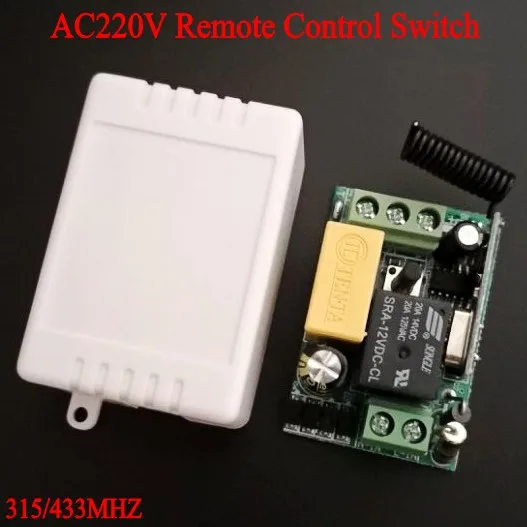

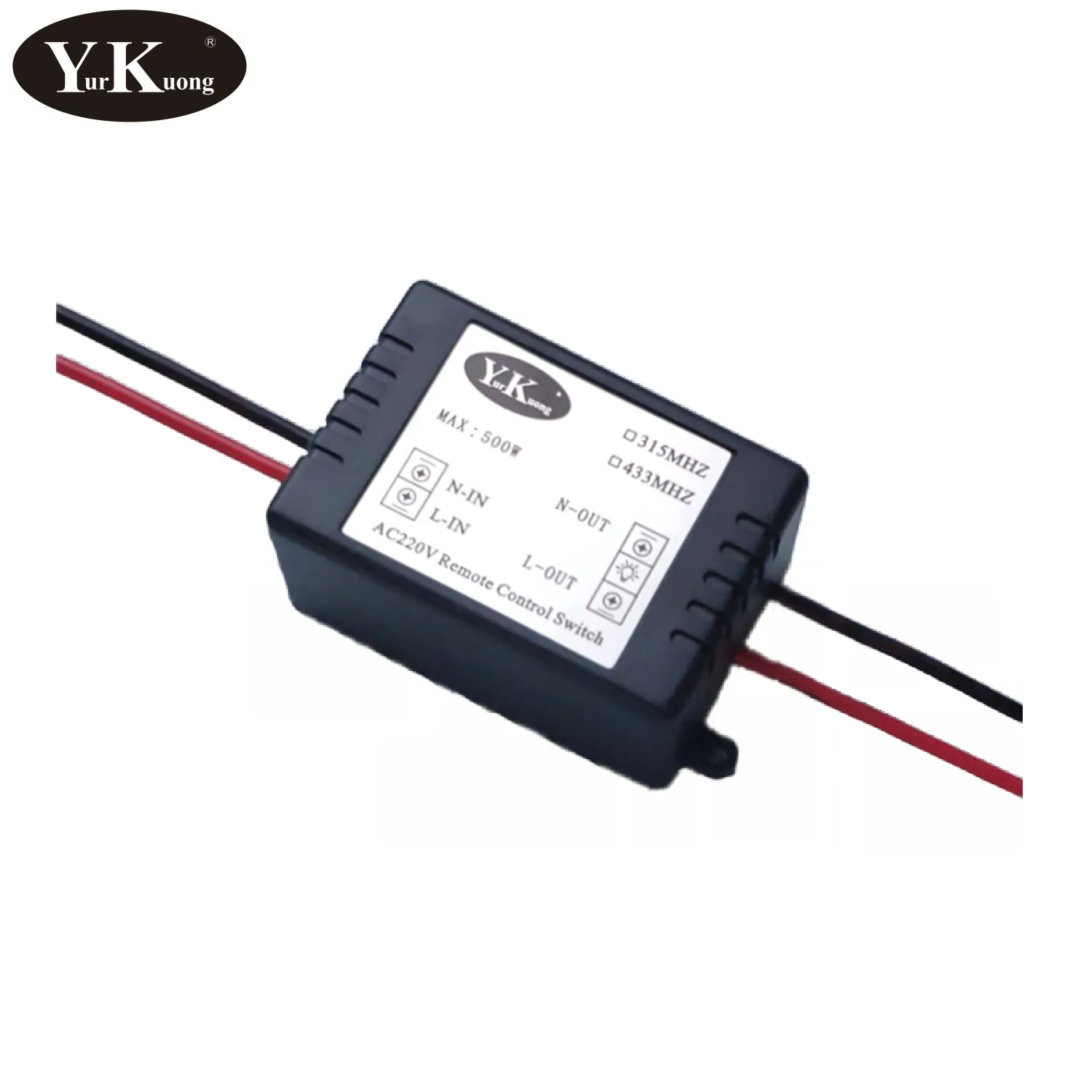

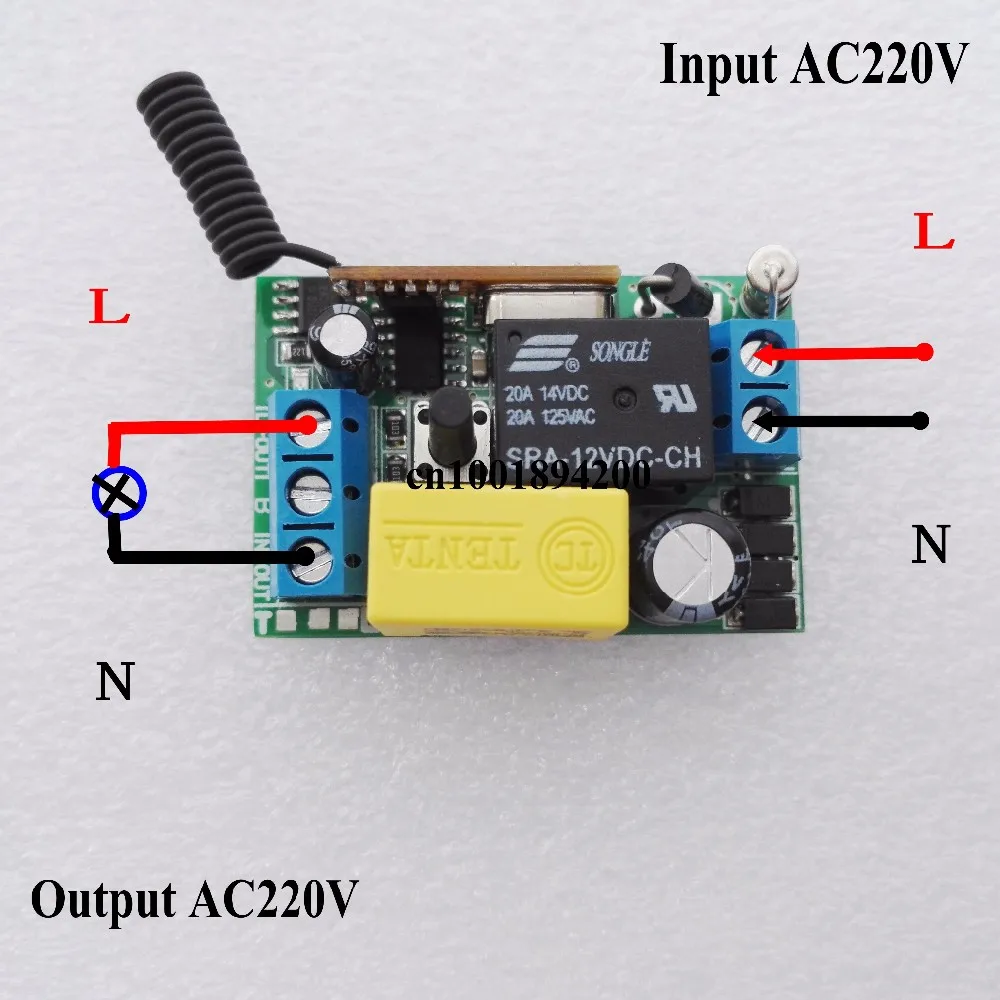

1. Working Voltage: AC220V (Input AC220V Output AC220V)
2.Max Current: 10A Relay (please load less than 600W AC220V )
3.Channel: 1CH

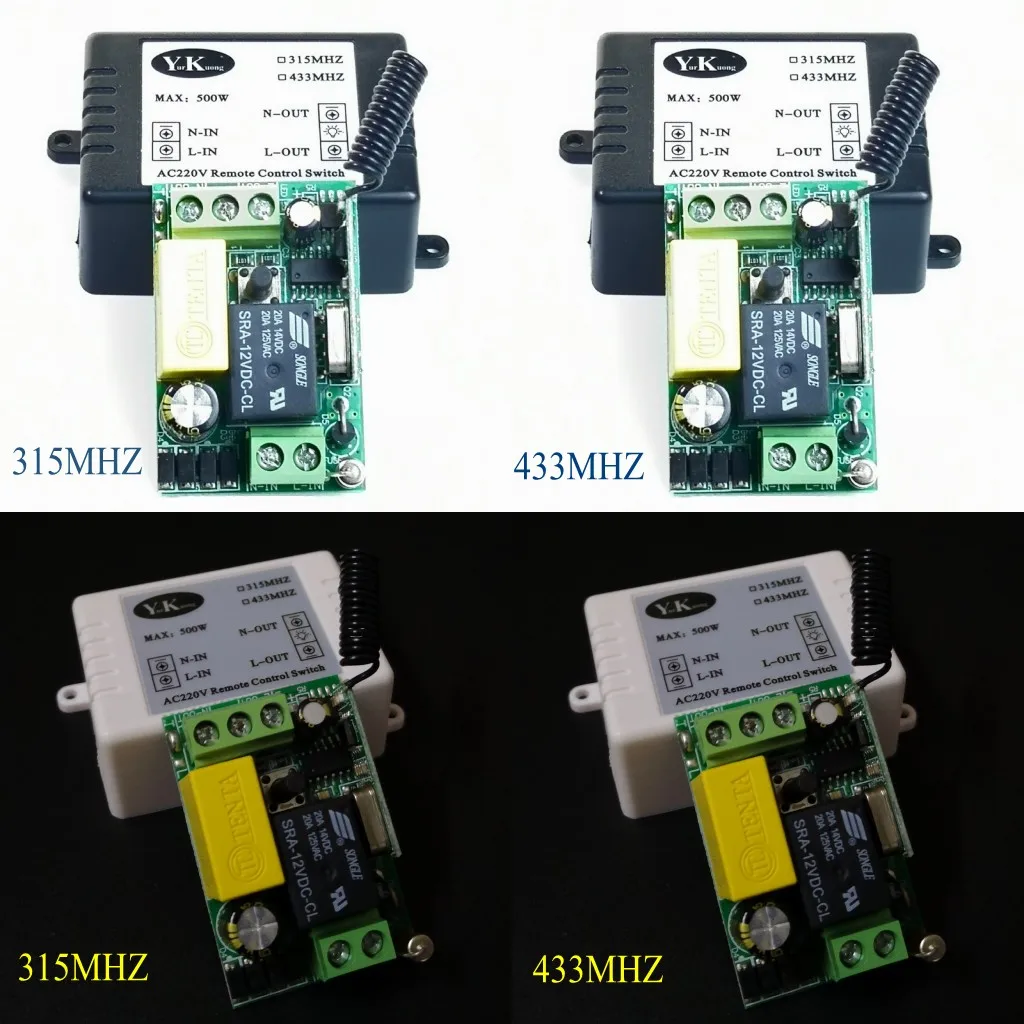

4.Working Frequency : 315MHZ/433MZH Optional by leaving massage
Receiver sensitivity: : -105Db
Working temperature : -10’C – +60’C
Output way : Momentary. Toggle .Latched Adjustable

Code type: Learning code Add Controller by the Learning Button on the receiver

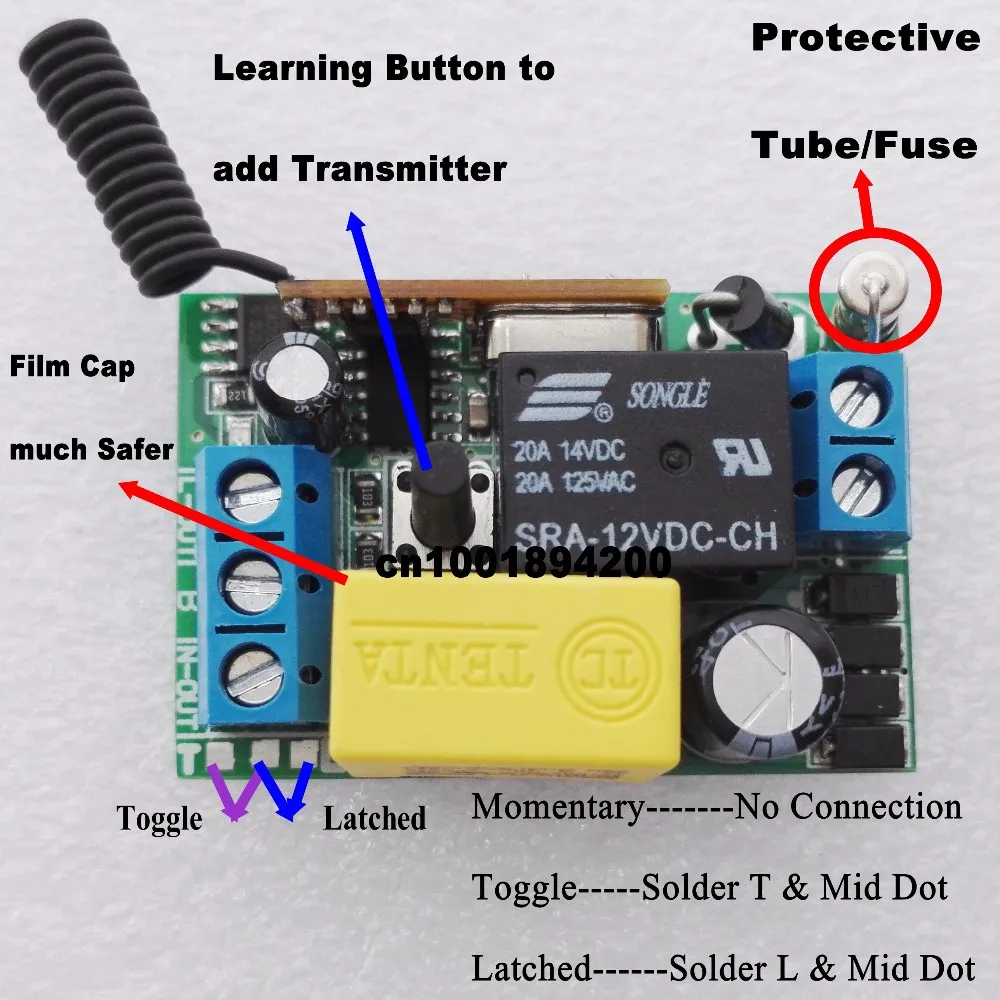

Output State:
Momentary, Toggle, Latched adjusted freely by soldering with different dot .

A: Momentary———–No connection is Momentary.

B: Toggle————Connect “T& Mid Dot “is Toggle.

C: Latched————- Connect “L& Mid Dot” is Latched.

Momentary————Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle—————Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched————Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

Learning Method

Momentary/Toggle—-

Input AC220V for the Receiver .Keeping press the learning button, the LED indicator flash fast then press the transmitter button, until the LED indicator stop to flash fast ,it mean learning successfully.

Latched ——

Input AC220V for the Receiver .Press the Learning Button on the received,until the LED Indicator flash fast, Release it. Press 1th Button ,then you hear the relay act sound , then press the learning Button again , the LED indicator flash, Release it,Press the 2th Button ,then you hear the relay act sound again , it means Latched mode learning is finished

( ON OFF Button Learning is independent,you can set the ON OFF Button as your needy)

Clearing Code

Keeping press the Learning Button on the receiver until the LED indicator flash fast until it flash slow for 2 times. it mean the code have been cleared successfully.
