Tempered Black White Crystal Glass

EU/UK Touch Switch

Multiple colors and Gang to choose for home improvement Enjoy your smart home life

Super touch sensitivity

The high sensitivity experience is the same as pressing the phone

Tempered crystal panel glass

Prevent scratches and scarring not easily deformed and discolored

Tempered Glass and PC Case is Fireproof

Strengthen protection for the short circuit of power line Fireproof rate is V-0

The crystal panel is Moisture proof

The wet hand can operate the panel and the water vapor does not easily enter the inside of the panel

Tempered Glass Panel EASY to Clean

Convenient for maintenance and cleaning with a cloth or tool

On and off the backlight effect

On is red display, Off is blue display

Soft light indicator

The weak blue light will not affect your sleep

The switch is suitable for lamp types

halogen lamps, high pressure sodium lamps, LED lamps, energy-saving lamps, incandescent lamps

Main switch

Excellent process manufacturing and technology upgrade

How to use capacitors

1. The power needs to be turned off during installation
2. Please connect the “L” position to FireWire correctly
3. Located at the “L1”, “L2” and “L3” positions respectively to control the light bulb
4. The cover can be opened to complete the final process
5. The figure below is the schematic diagram of the capacitor installation: the installed load bulbs are halogen lamps, led bulbs, high-voltage strips, smart led bulbs or bulbs less than 5W, all need to install this yellow safety capacitor, and the capacitors are connected in parallel to control the live and neutral wires

Switch installation video

1. It needs to be powered off during installation
2. Please correctly connect the ‘L’ position to FireWire
3. ‘L1’L2’L3’ respectively position to control the live wire of the bulb
4. The cover panel can be powered on to complete the final process
5. The figure below is a schematic diagram of installing the capacitor: the installed load bulb is a halogen lamp, led bulb, smart bulbs or bulbs less than 5W need to install this yellow safety capacitor, the capacitor is connected in parallel between the control live wire and the neutral wire

Display of different decoration scenes

picture display as an example, there is a difference between the effect picture and the actual display

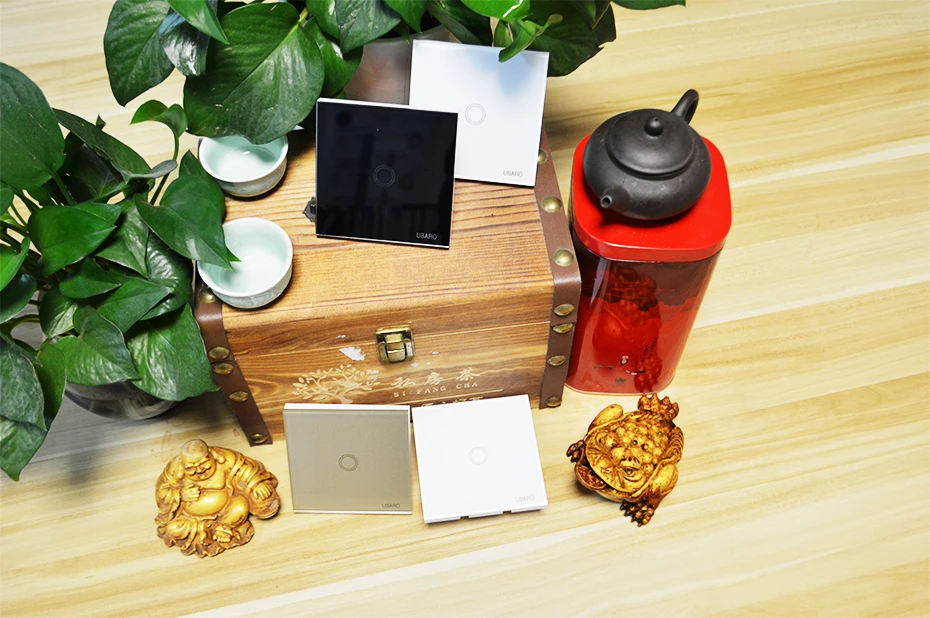

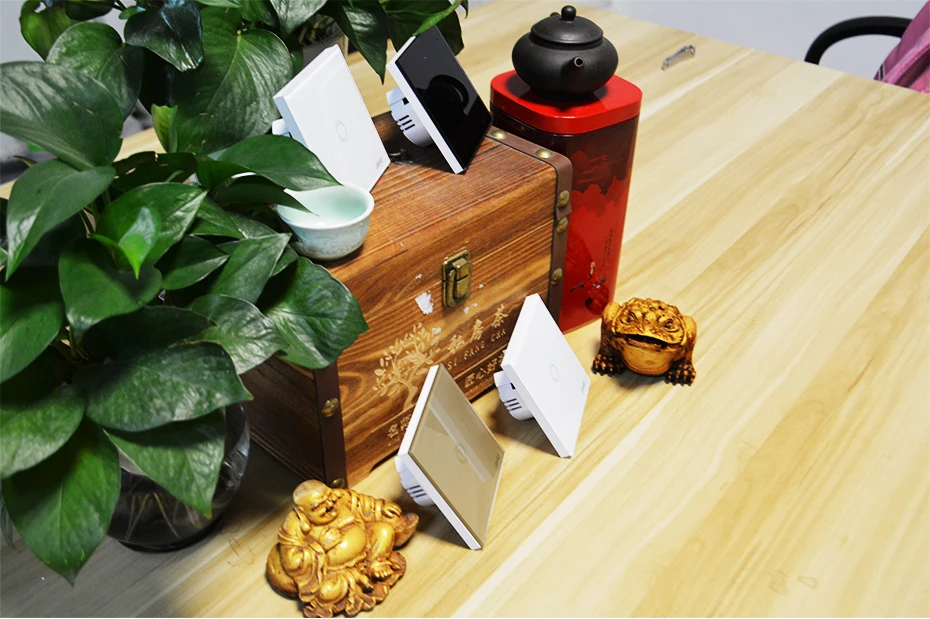

Product real pictures for example

The color of the product is subject to the actual product

2、Toughened crystal glass panel design, no fading, looks elegant and stylish.
3、Super sensitivity-Just need touch it light， Waterproof and Resistance Scratch. Protection Against Electric Shock.
4、 Popular Colors are available: Black, White, Golden,
5、With blue LED indicator, very distinguished, more humanization design,The button will glow at night, making it easier to find.
6、New imported IC processor for nice sensitivity and stable performance
7、the base is made of high temperature resistant PC material, making the switch durable and longer life.
8、Single live wire control, easy to install, replace the old switch directly.
9、Touch control ensures longer service life than traditional switch.
10、Protection of over-current, anti-interference，Certification: CE, ROHS, FCC、EU.
11、Easy to clean, panel glass resists deformation and fading.
12、 Elegant look, Suited greatly with many modern decor styles. It can be applied to drawing room, bedroom, corridor, kitchen, bathroom, Office and so on.

Product Introduction:1、Brand Name: UBARO
2、Button:1 gang、2gang、3gang for you choose
3、Color: Black, White, Golden
4、Size: 8.6*8.6*3.5cm / 3.4*3.4*1.4″ (L*W*H)
5、Current: 10A
6、Watt:3-300W/gang
7、Working Voltage: 170V-240 V AC
8、Working Temperature: -20 ℃~+70℃
9、Relative Humidity: 10% ~ 90%
10、Mechanical Life: 100000 Times
11、Certification: CE,CCC ,ROHS
12、Warranty: 1 year
13、Delivery time: <3 days Received your order
14、Gross weight：0.15kg/5.25oz Net weight: 0.14kg / 4.9oz
15、Package dimensions：9.0*9.0×4.0cm/3.5×3.5×1.55(L*W*H)

Package:

1*Touch Switch
2*Long Screw
1*Safety X capacitor
1 *  User Manual
1*Package box

Note:

1、You have to cut off the power and during the installation.
2、Single firewire design.No need to open the wall rewiring,diret replacement of the old switch.
